Thermal Insulation Materials in Power Generation

Thermal insulation linings are very important parts in power plants for maintaining efficiency, protecting personnel, and ensuring safe operation. It's applied across various systems:

Boilers: Insulating furnace walls, steam drums, and piping to minimize heat loss and maximize steam generation.
Turbines: Reducing heat radiation from turbine casings and steam lines, improving efficiency and protecting personnel.
Piping: Insulating steam and hot water lines to prevent heat loss during transport.
Heat Exchangers: Minimizing heat loss and maximizing heat transfer between fluids.
Flue Gas Ducts: Reducing heat loss and preventing condensation in flue gas systems.

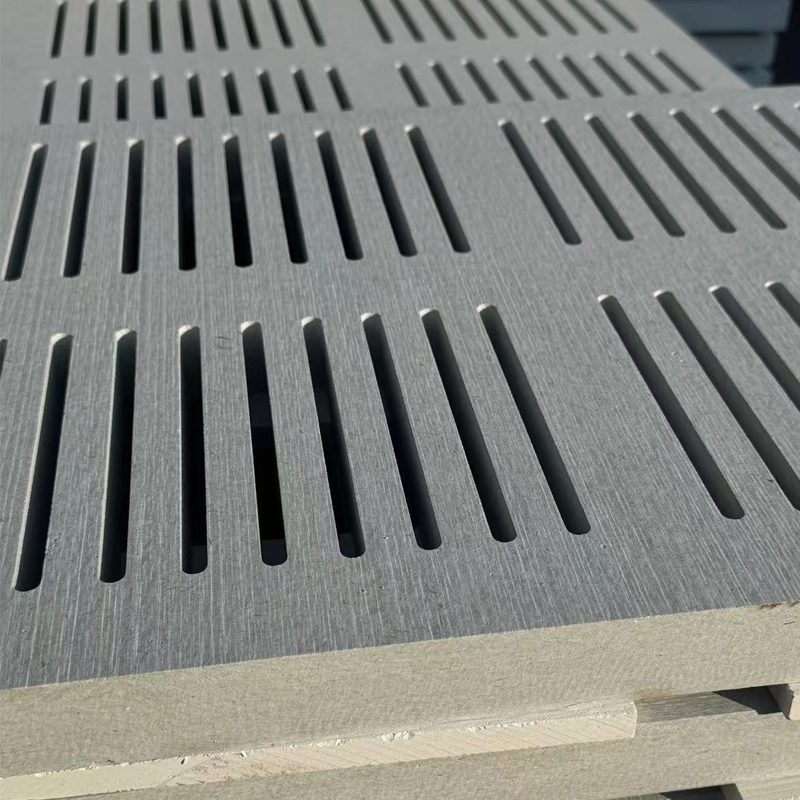

Ceramic Fiber Insulations:

Ceramic fiber insulation is a common choice in power plants due to its properties below:

High-Temperature Resistance: Withstands extremely high temperatures found in boilers and turbines.
Low Thermal Conductivity: Provides excellent insulation, minimizing heat loss and improving efficiency.
Lightweight: Reduces the load on structures and simplifies installation.
Excellent Thermal Shock Resistance: Withstands rapid temperature changes without damage.
Flexibility: Can be formed into various shapes and sizes, adapting to complex equipment geometries.

Calcium Silicate Board/Pipe Sections:

While ceramic fiber excels at very high temperatures, calcium silicate is also used, particularly for lower temperature applications:

Good Thermal Conductivity: Effective insulation for moderate temperature systems.
Lightweight: Easier to handle and install compared to heavier insulation materials.
Dimensional Stability: Maintains its shape at elevated temperatures.
Cost-Effective: Often a more economical choice than ceramic fiber for certain applications.

Calcium silicate is commonly used for:

Piping insulation: Especially for steam and hot water lines.
Equipment insulation: For vessels, tanks, and other equipment operating at moderate temperatures.

Both ceramic fiber and calcium silicate play vital roles in ensuring the efficient and safe operation of power plants by minimizing heat loss, protecting equipment, and safeguarding personnel.
