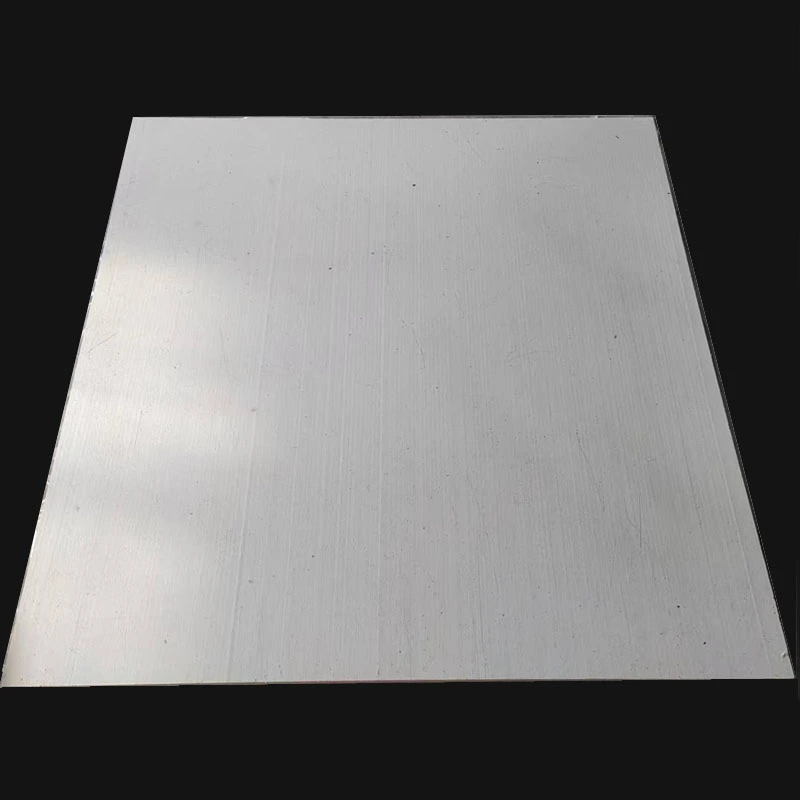

NR-60 or NR-85 materials are large-size, rigid insulating boards based on calcium silicate with a low thermal conductivity. They are specifically designed non-asbestos and reinforced with special selected fibers, which make it have a high mechanical strength and low shrinkage, it is an ideal material to offer stable and effective industrial insulation solutions.
NR-60 board is a rigid machinable insulation used as a thermal break in process plants and as skin insulation parts in apparatus, ovens and dryers, it works as a resized parts or a spacer in the industrial equipment and can be machined into special
NR-85 boards are strong dense calcium silicate boards ideally suited for applications where good insulation values and high mechanical resistance are required, they are employed not only in the general machine and apparatus construction sector but also as structural components for preventive fire protection, such as for pipe supports.
| Thermal shrinkage 12hr | 1000℃ | 1000℃ | 1000℃ | 1000℃ | 1000℃ | 1000℃ | |
| @ Length or Width | % | 0.2 | 0.20 | 0.2 | 0.4 | 0.4 | 0.40 |
| @ Thickness | % | 1.4 | 1.40 | 1.3 | 1.5 | 1.0 | 1.0 |
| Screw Holding Strength @ 22mm penetration | kg | 80 | 105 | 110 | 120 | 120 | 145 |
| Coefficient of Thermal Expansion | /℃ | 6.5*10-6 | 6.4*10-6 | 6.4*10-6 | 6.4*10-6 | 6.3*10-6 | 6.1*10-6 |
| Standard Sizes | 1200 X 600 mm , 1200 X 1200 mm , 2400 x 1200mm, 2520 x 1200mm | ||||||
| Available Thickness | 13, 19, 25, 27, 32, 38.1 44, 51.4, 63, 76.1, 101.6 | ||||||
| Advantages | Low thermal conductivity, Non‐wetting, Excellent mechanical strength, Asbestos free, easy to install, dimensional stability | ||||||
| Applications | • Dip tubes • Pouring spouts • Hot‐top rings • Stopper pins • End dams • Floats • Launders, Holding furnace insulation linings, ladle insulation boards. | ||||||
Note: The physical and chemical properties listed represent typical, average values obtained in accordance
with accepted test methods and are subject to normal manufacturing variations. They are supplied as a technical service and are subject to change without notice
High strength
Large-size
Self-supporting
Good machinability
Good thermal insulation
High temperature resistance
Excellent properties for
Fire protection structures
Physiologically harmless
Contain no asbestos
Load bearing pipe supports
Heat shields
Structural thermal breaks
Furnace bottom boards
