NRCL™ High Temperature Alumina Fiber Boards

High temperature boards are rigid and self-supporting used at a temperature of 1600-1800°C, which is made from alumina fiber with unique forming technology and treatment process, offer exceptional high temperature stability, low thermal conductivity at elevated temperature. Available in various compositions, densities and sizes, additional hardness and strength can be reached with post treatments.

Application Temperature：1700°C, 1750°C, 1800°C
Density: 300-700kg/m3
Advantages
Exceptional thermal stability
Low thermal conductivity
Low heat storage
Good flexural and compressive strength
Close tolerance with excellent surface finish
Easy to cut, drill or saw.

Availabilities Thickness: 25-125mm

Typical Dimension: 900 x 600mm or 1000 x 600 mm

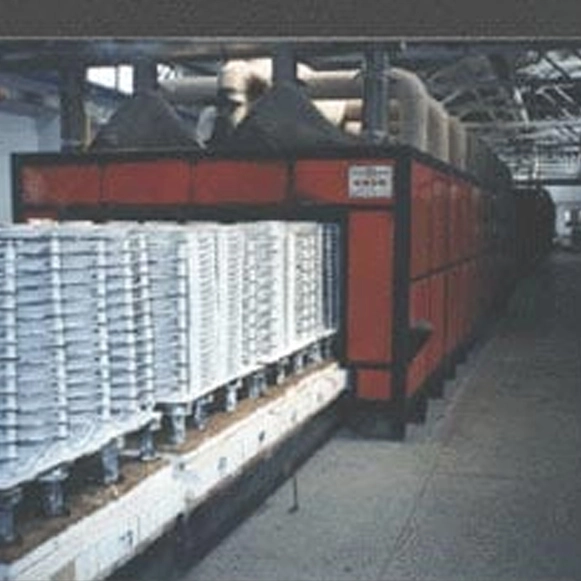

Applications High temperature furnace linings/Industrial kiln or lab testing kilns / Combustion chamber insulation
