NR-110 boards, as high-density calcium silicate boards, are indeed known for their combination of high-temperature stability, mechanical strength, and increasingly important, excellent electrical insulation properties. This makes them highly versatile for various industrial applications where both thermal and electrical isolation are critical.
The electrical insulation capability of NR-110 boards stems from their fundamental composition:
· Inorganic, Non-conductive Materials: Calcium silicate is an inorganic compound, and its primary constituents (calcium, silicon, oxygen) are inherently poor conductors of electricity. This atomic structure does not readily allow for the movement of free electrons, which is necessary for electrical conduction.
· Absence of Free Ions/Mobile Electrons: Unlike metals, which have a "sea" of delocalized electrons, the electrons in calcium silicate are tightly bound within stable ionic and covalent bonds. This prevents them from carrying an electrical current.
· Low Moisture Absorption (when dry): While calcium silicate can be hygroscopic (absorb moisture), high-density grades like NR-110 are generally designed to have low porosity, which limits moisture ingress. Moisture can significantly reduce the electrical resistance of any material, so minimizing its absorption is crucial for maintaining dielectric strength. For high-temperature electrical applications, thorough drying of the boards before use is often recommended to eliminate any residual moisture.
· High Dielectric Strength: This refers to the maximum electric field that an insulating material can withstand without experiencing electrical breakdown (i.e., becoming conductive). NR-110 and similar high-density calcium silicate boards possess a high dielectric strength, meaning they can effectively prevent the flow of electricity even under significant voltage differences. Values like 61 V/mil (volts per mil, where 1 mil = 0.001 inch) are reported for comparable high-strength calcium silicate boards, indicating strong insulating capabilities.
· Thermal Stability of Electrical Properties: A crucial aspect for high-temperature applications is that the electrical insulation properties of NR-110 boards remain stable at elevated temperatures. Unlike some materials whose insulating capabilities degrade significantly with heat, calcium silicate maintains its dielectric strength over a wide temperature range, often up to its maximum continuous use temperature (e.g., 1000°C / 1832°F).
The combination of high temperature, mechanical, and electrical insulation properties makes NR-110 boards invaluable in several demanding industrial sectors:
1. Induction Furnaces (Metallurgy/Foundry):
o Application: This is a prime application. Induction furnaces use powerful electromagnetic fields to melt metals. The coil that generates this field carries high currents and voltages. NR-110 boards are used as casing insulation for the induction coil, crucible insulation, and lining for the furnace body.
o Why NR-110: They provide the necessary electrical isolation between the high-voltage coil and the furnace shell/operator, preventing short circuits and electrical hazards. Simultaneously, their thermal insulation prevents heat loss from the molten metal, and their high mechanical strength can support the forces generated by the induction process and the weight of the molten charge. Their non-wetting property is also critical when used in contact with molten non-ferrous metals.
2. Power Generation / Electrical Equipment:
o Application: In power plants and other high-voltage environments, NR-110 boards can be used as electrical insulation barriers, transformer insulation, bus bar supports, arc chutes, and insulating spacers in switchgear and circuit breakers.
o Why NR-110: The ability to withstand high temperatures while maintaining high dielectric strength is vital in these applications where electrical components can generate considerable heat. Their mechanical rigidity ensures stable support for electrical conductors.
3. Industrial Presses and Platen Insulation:
o Application: Used as insulating layers in heated platen presses (e.g., for manufacturing composites, laminates, rubber, or wood products), molding presses, and die-cutting machines.
o Why NR-110: They prevent heat transfer from the hot platens to the machine frame, protecting sensitive electrical components and reducing energy consumption. Their high compressive strength allows them to withstand the immense pressures exerted by these presses without deforming or failing. Their electrical insulation also prevents stray currents or potential differences from affecting the press operation or safety.

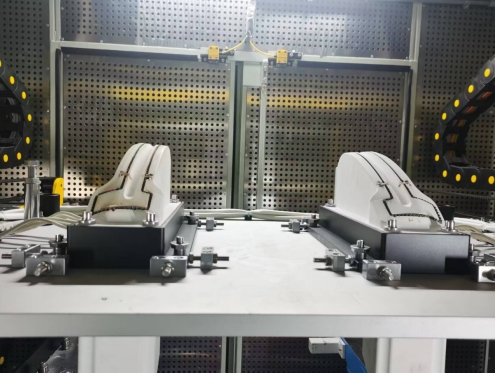

4. Brazing and Welding Jigs/Fixtures:
o Application: In processes like induction brazing or resistance welding, jigs and fixtures are required to hold workpieces. These jigs often need to be electrically non-conductive to ensure the current flows only through the desired areas of the workpiece.
o Why NR-110: NR-110 boards can be precisely machined into complex shapes to create insulating jigs and fixtures that withstand the intense localized heat while providing electrical isolation, ensuring efficient and controlled heating/welding.
5. Furnace Components (General Industrial):
o Application: As insulating supports, spacers, and structural components within various high-temperature industrial furnaces where electrical elements or thermocouples are present and require isolation.
o Why NR-110: They offer thermal and electrical isolation while maintaining structural integrity in high-temperature, sometimes corrosive, environments.
In summary, the electrical insulation character of NR-110 high-density calcium silicate boards, combined with their superior thermal and mechanical properties, makes them a material of choice for demanding applications where reliability and safety under extreme conditions are paramount.
