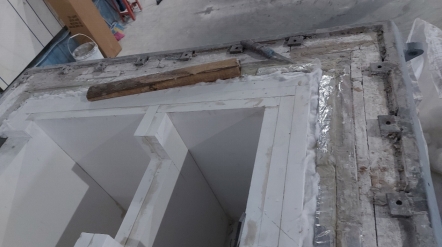

For an aluminum holding furnace bath, a multi-layered insulation system is crucial to minimize heat loss, maintain consistent molten metal temperature, and extend the lifespan of the furnace. Each layer serves a specific purpose, from direct contact with the molten metal to providing structural support and ultimate insulation.
Here's a breakdown of possible thermal insulation materials for each layer:
This layer is the most critical as it directly interacts with molten aluminum, typically at temperatures around 700-800°C. Therefore, it must possess exceptional non-wetting properties, chemical inertness, high refractoriness, and resistance to thermal shock and mechanical erosion from cleaning.
· Carbon Fiber Reinforced Calcium Silicate Boards (e.g., high-density grades like NR-80/85, High Density Calcium Silicate Board): As you mentioned, this is an excellent choice.
oKey Factors: Their primary advantage is their non-wetting property with molten aluminium, which prevents metal penetration, dross build-up, and ensures a clean furnace lining. The carbon fiber reinforcement provides high mechanical strength, excellent thermal shock resistance, and improved toughness, reducing the risk of cracking or spalling. They are also easily machinable, allowing for precise shapes.
o Composition: These boards are primarily composed of calcium silicate hydrates reinforced with carbon fibers, often with specific additives to enhance non-wetting and overall performance.
· Alumina-based Refractory Castables with Anti-Wetting Additives : While not a board, these are common for hot-face linings.
o Key Factors: These castables are designed to be "non-wetting" or "aluminum-resistant" due to proprietary additives (like barium sulfate or phosphates) that create a barrier against molten aluminium penetration and corundum formation. They offer good refractoriness and mechanical strength.
o Composition: High-alumina aggregates bonded with calcium aluminate cement, often with specialized anti-wetting agents.
This layer sits behind the hot face and primarily provides additional thermal insulation and some structural support. It needs to withstand elevated temperatures, although not direct molten metal contact, and contribute to the overall thermal efficiency.
· Insulating Firebricks (IFBs):
o Key Factors: IFBs are lightweight, porous ceramic bricks with good insulating properties. They come in various temperature ratings. Their porosity traps air, reducing heat transfer. They offer a balance of insulation and structural integrity.
o Composition: Made from high-purity refractory clays, alumina, and silica, fired to create a porous structure.
· Low-Density Calcium Silicate Boards:
o Key Factors: While less dense than the carbon fiber reinforced variety, these boards still offer good thermal insulation and moderate strength. They are easier to handle and cut than traditional bricks.
o Composition: Similar to the hot-face calcium silicate, but with lower density and potentially different fiber reinforcement (e.g., glass fibers) or less compact structure.
· Ceramic Fiber Boards:
o Key Factors: These rigid boards are made from compressed ceramic fibers, offering excellent thermal insulation and good hot strength. They are lightweight and easy to install.
o Composition: Alumina-silica fibers, often with inorganic binders.
This outermost layer is typically the thickest and aims to reduce heat loss to the ambient environment, keeping the furnace shell cool and improving energy efficiency. It experiences the lowest temperatures in the lining system.
· Microporous Insulation Panels (e.g., NR 1000°C Classic Insulation Boards):
o Key Factors: These are highly efficient, ultra-thin insulation materials. Their unique nanoporous structure and opacifiers effectively block all three modes of heat transfer (conduction, convection, and radiation), providing significantly lower thermal conductivity than conventional insulators. They allow for thinner overall lining designs while achieving superior insulation.
o Composition: Primarily composed of fumed silica (nanophase silica dioxide) with reinforcing fibers and opacifiers (e.g., silicon carbide or zirconium silicate).
· Ceramic Fiber Blankets/Modules:
o Key Factors: These flexible, lightweight materials are excellent for bulk insulation. They can fill irregular spaces and reduce installation time. Modules are pre-compressed and folded for easier installation in larger areas. They offer good thermal shock resistance.
o Composition: Spun alumina-silica fibers, often needle-punched to provide strength in blanket form. Modules are created by folding and compressing blankets.
· Mineral Wool Boards/Blankets:
o Key Factors: A more economical option for lower temperature areas. They provide good thermal insulation and are non-combustible.
o Composition: Made from molten rock or slag spun into fibers, often with organic binders.
· Ceramic Fiber Paper:
o Key Factors: Thin, flexible sheets of ceramic fiber. Can be used for gaskets, expansion joints, or as a thin insulating layer in tight spaces behind other insulation materials.
o Composition: High-purity alumina-silicate fibers with small amounts of organic binders.
By combining these different materials, each optimized for its specific thermal and chemical environment, a robust and energy-efficient insulation system for an aluminium holding furnace can be achieved, leading to improved casting quality and reduced operational costs.
