Polycrystalline Wool (PCW)

June 18, 2013
0 Comment

PCWs are made predominantly of aluminum (content typically 72-99% in the form of oxide) with the remainder consisting of silicon. The fibers are manufactured by sol-gel technology using gel extrusion, spinning and/or drawing in controlled air streams, using equipment/processes specifically designed to produce fibers of defined dimensions. These are then subjected to high-temperature treatment to produce the required polycrystalline structure.

A range of chemistries is used, with alumina content varying from 72-97% but always with silica as the only other major component.  PCW fibers have final dimensions such that the median diameter is more than 3 microns, and less than 2% of the total fiber-length is less than 1 micron in diameter. Within this definition, PCW is manufactured to a number of different specifications with different average fiber diameters, all within a relatively narrow range. Thus, in addition to standard products with median diameters typically in the range 3-of 4 microns, manufacturers have also developed larger diameter variants with diameters more typically in the range of 5-7 microns.

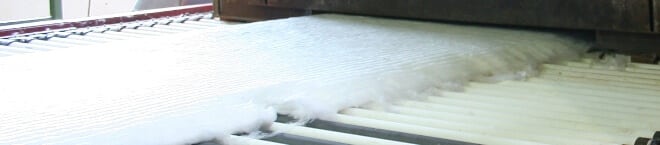

Polycrstalline Wool

Polycrstalline wool, high insulation fiber

Polycrstalline Fiber Board

Polycrstalline Fiber Board

Advantages and Properties

lightweight and flexible/     low thermal conductivity and heat storage     /   high thermal and chemical resistance
high thermal shock resistance   /    easy to work     /    electrically non-conductive  /    numerous delivery forms
Prefabricated building components and cut sections

Typical Application
Typical PCW applications include use as support mats in catalytic converters and diesel particulate filters to reduce exhaust emissions, and as insulation in industrial high temperature furnaces for energy conservation, particularly in high temperature and/or chemically aggressive environments.
